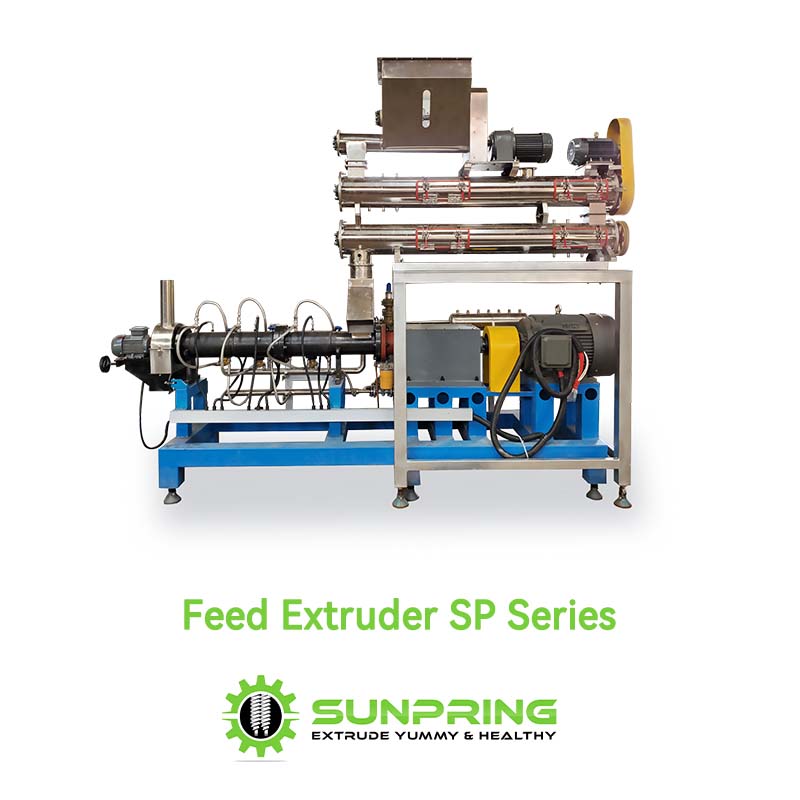

SP Series — The proven workhorse extruder
A no-nonsense twin-screw extruder for floating and sinking fish feed, shrimp pellets and pet food. Simple to run, cheap to maintain, built for 24/7 production.

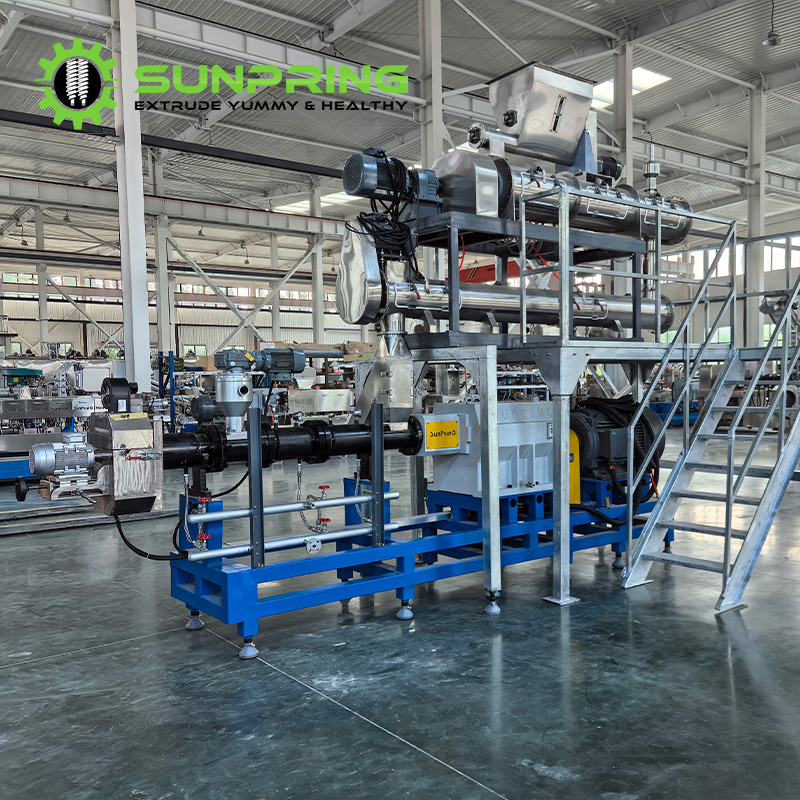

The SP series is SunPring's classic twin-screw extruder — the machine most feed plants start with. Proven mechanics, easy operation and low running cost, from 100 kg/h start-up to a 5-ton/hour production line. It runs both floating and sinking pellets; you only change the die, screw configuration and formula.
Built to run
SP series models
| Model | Main motor | Output | Typical use |
|---|---|---|---|
| SP200S-D | Diesel engine | 100–260 kg/h | Off-grid / farm scale |
| SP200S | 15 kW | 100–200 kg/h | Start-up, trials |
| SP300S | 22 kW | 200–400 kg/h | Small plant |
| SP500S | 30 kW | 400–600 kg/h | Small plant |
| SP800S | 45 kW | 700–1000 kg/h | Growing line |
| SP1500S | 75 kW | 1000–1700 kg/h | Production line |
| SP2500S | 90 kW | 1800–2500 kg/h | Mid-size plant |
| SP3500S | 132 kW | 2500–3500 kg/h | Large plant |
| SP5500S | 200 kW | 4500–5500 kg/h | Industrial scale |
What the SP series makes
Why SP
- Proven design, lowest running cost — no fancy extras, just the parts that matter.
- Cheap, available spares — segmental screws and standard wear parts.
- Diesel option (SP200S-D) — run off-grid where there's no 3-phase power.
- Floating & sinking on one machine — change die and formula, not the extruder.
- Grow with it — start at SP200S, add capacity as output grows.
Tell us your target output and product — engineers recommend the right model and send a factory-direct quote within 24 hours.
Contact SunPring Today
Send Inquiry Now
Click to connect with SunPring, our quick-response customer service will contact you soon. 100% Promise!
Equipment Featuresat

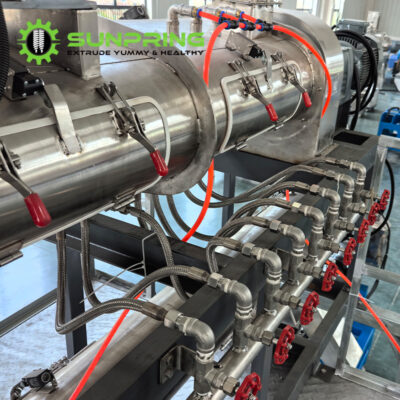

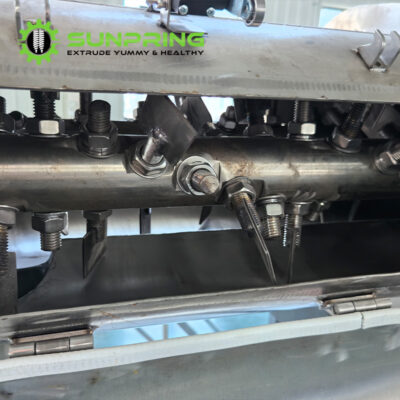

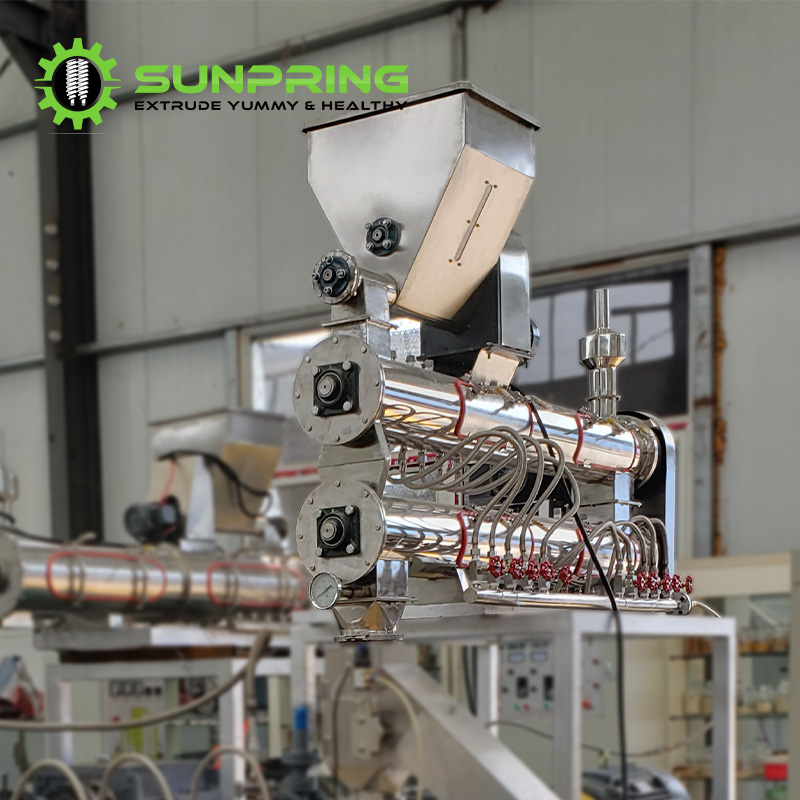

Pre-conditioner
Stainless steel and mild steel construction. The conditioner is consisting of a two layer conditioner cylinder and a feeder.

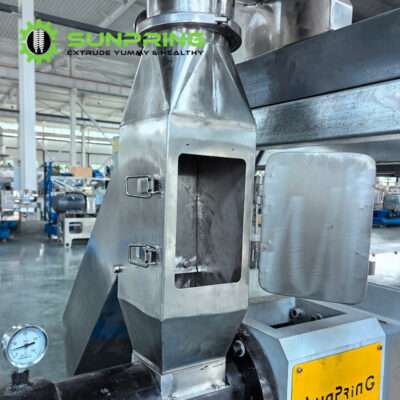

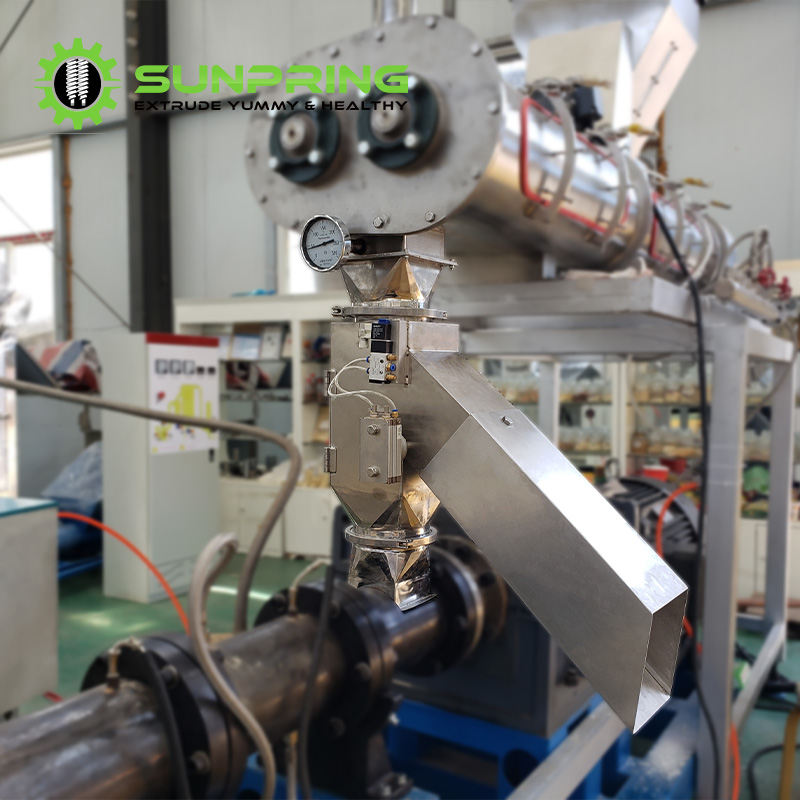

Bypass between conditioner to extruder
Use a card hoop connection to facilitate disassembly and pneumatic valve control. You can quickly switch the logistics direction and observe the window independently to facilitate observation.

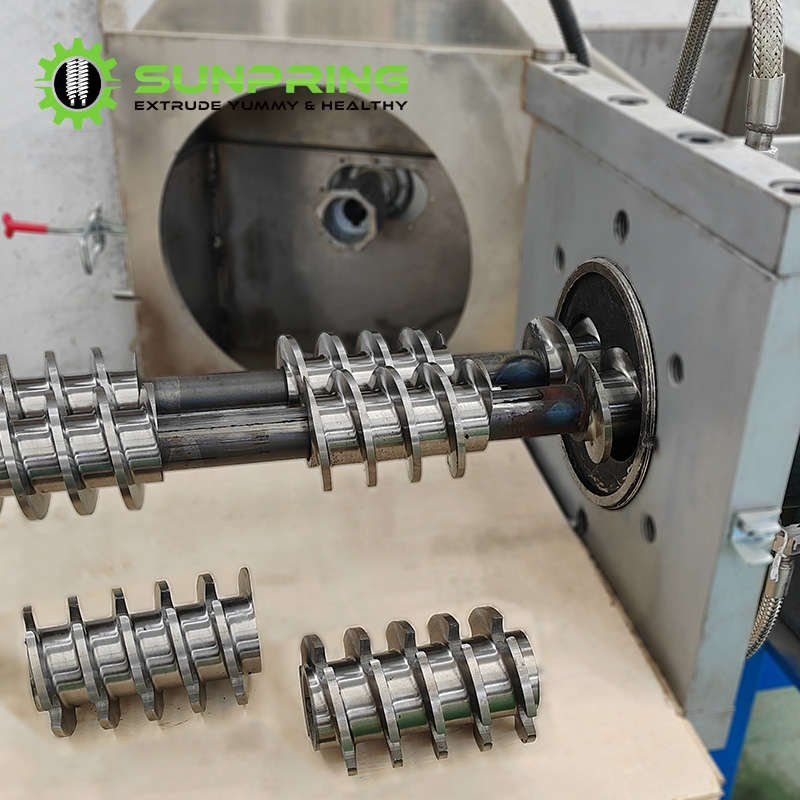

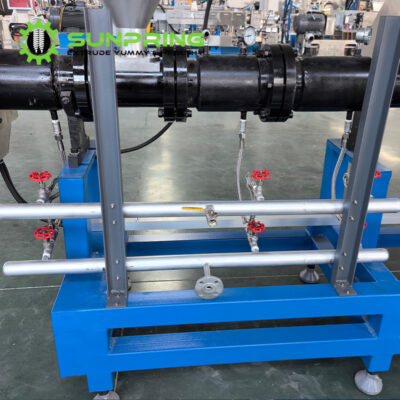

Barrel and Screws
High quality - Screw material: 38CrMoAL (nitrided); Hardness: HRC55-60;More wear-resistant: More wear resistant bimetal barrel.

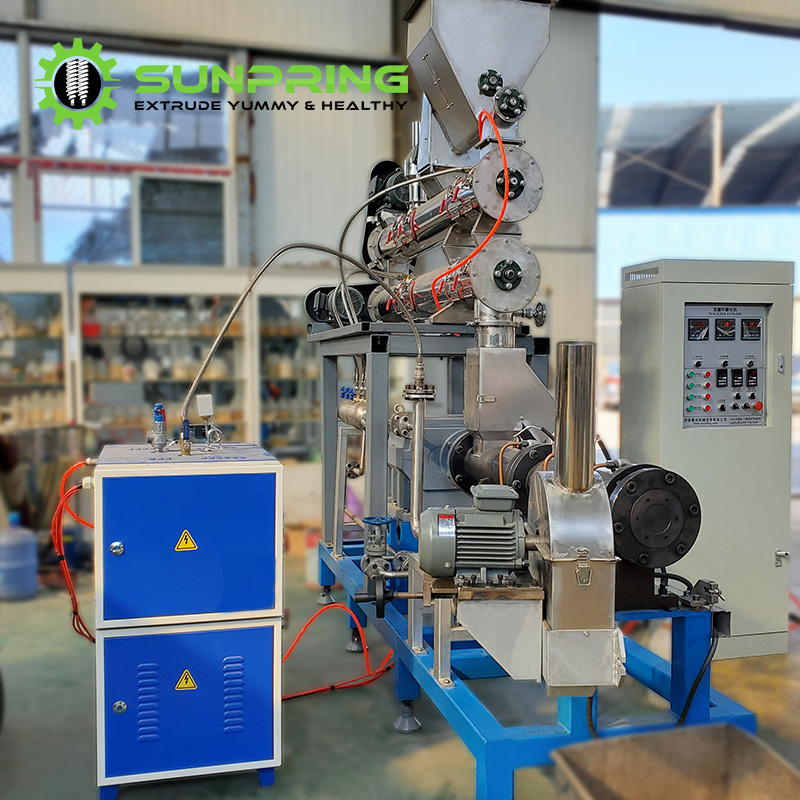

Steam Generator
The barrel and modulator are heated by steam, with low operating cost and more energy saving. The steam generator is controlled by PLC, easy to install and easy to operate.
